COIL / SLAB / PIPE HANDLING
Coil Transfer Cart (Rail / Battery)
5–120 t · Single/Double cradle · Fixed/Adjustable V‑saddle · Optional rotary/lift deck · Battery / Low‑Voltage Rail / Cable‑Reel
- PU/Rubber lined V‑saddle
- Anti‑roll chocks & tie‑downs
- VFD traction & soft start
- Radio / Pendant / Cabin
Steel coils, aluminum, copper & slit coils · CE / ISO compliant · Factory load test with load & video.
- ISO 9001
- CE Marking
- FEM / ISO Duty
- 1-Year Warranty
- Spare Parts Support
Coil Protection
PU/rubber lining, anti‑slip plates & soft chocks to protect surface & edges.
Flexible Layout
Rail‑guided for fixed routes, or steerable battery for flexible aisles.
Safety Suite
E‑stop, horn, strobes; options for blue‑light, LiDAR & bumper sensors.
Process Ready
Rotary/lift deck for alignment with coilers, slitting lines & storage racks.
Why Coil Transfer Cart?
- Damage‑free handling: lined V‑saddle keeps coils centered and secure.
- Consistent throughput: quick pick/place cycles between coilers, lines & yards.
- Scalable power: battery for flexibility; low‑voltage rail for 24/7 duty.
- Made‑to‑order: cradle count, spacing, and deck functions per your coils.
Build Your Spec
Budget Estimate
Auto-updates from “Build Your Spec”. Budgetary range (ex-works). Final quote after drawings & duty confirmation.
- Capacity
- —
- Coil
- —
- Deck
- —
- Speed
- —
- Deck Type
- —
- Cradle
- —
- Power
- —
- Mobility
- —
- Lining
- —
- Control
- —
- Environment
- —
- Quantity
- —
- Timeline
- —

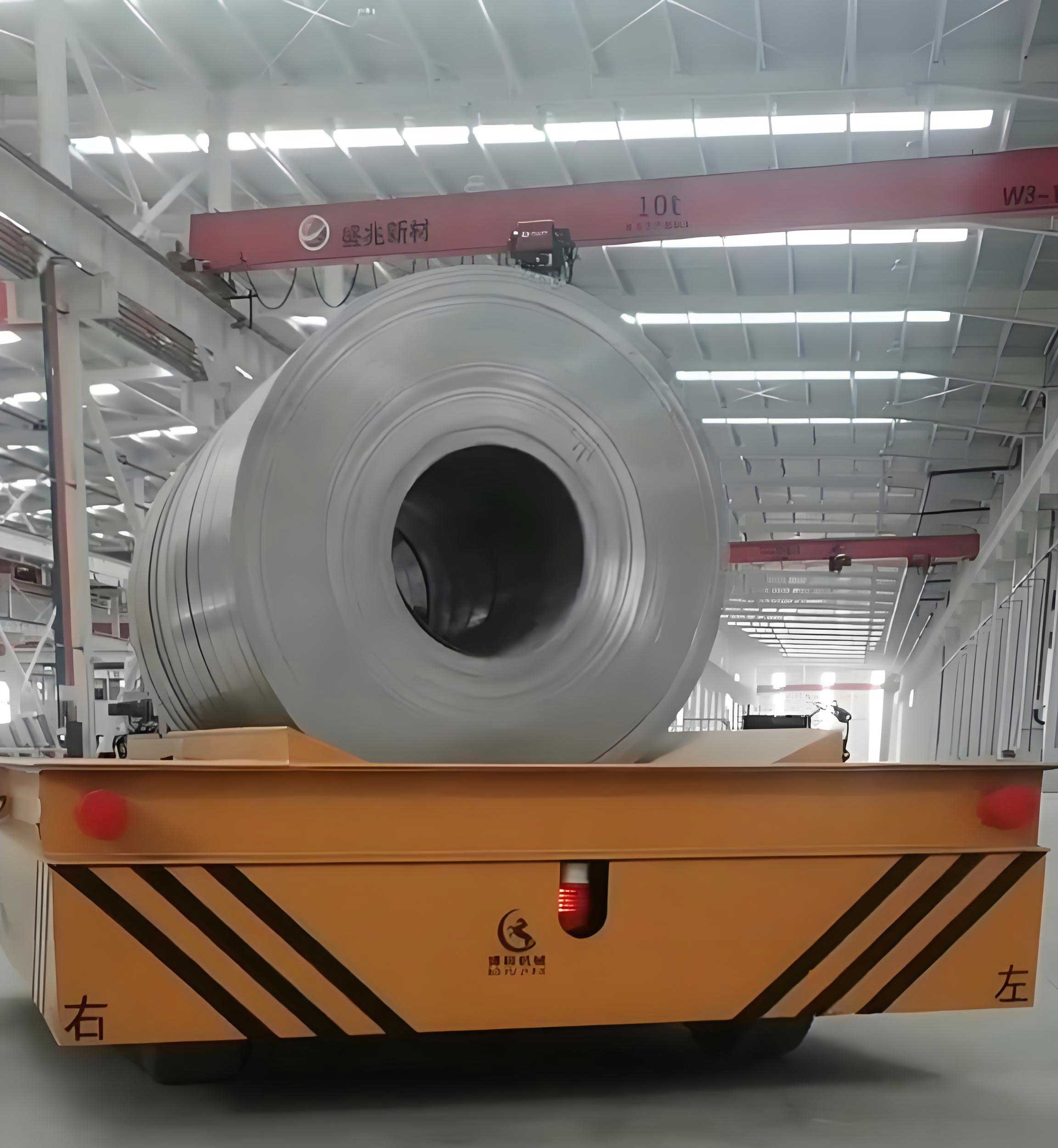

Applications & Examples
Technical Specifications
| Type | Coil transfer cart with V‑saddle cradle; rail‑guided or steerable trackless |
|---|---|
| Rated Capacity | 5–120 t standard (custom on request) |
| Coil Range | OD 600–2200 mm; ID 400–900 mm; width 600–2200 mm |
| Deck Functions | Fixed/Adjustable V‑saddle; optional rotary table or hydraulic lift |
| Power | Battery (LiFePO₄/Lead‑acid) / Low‑voltage rail (36–56V) / Cable‑reel |
| Mobility | Rail‑guided (fixed route) or steerable (trackless) for flexible aisles |
| Max Speed | 8–30 m/min (VFD) |
| Lining | PU / Rubber / Wood composite |
| Control | Pendant / Radio remote / Cabin |
| Brakes | Electromagnetic or electro‑hydraulic; regenerative on drive (battery) |
| Safety | E‑stop, horn, strobes; options for blue‑light, LiDAR, soft bumpers, tie‑downs |
| Environment | Indoor / Outdoor; high/low temp & dusty packages |
| Finish | Industrial epoxy; outdoor C3–C4 system |
| Docs | CE/ISO; FAT report with load test & videos |
From Inquiry to Commissioning
- 01 · SizingShare coil OD/ID/width, weight, route & floor data
- 02 · ProposalGA drawing & cradle spacing/lining, budget
- 03 · ManufacturingFAT with load & alignment checks
- 04 · DeliveryCrating & logistics
- 05 · CommissioningOn‑site training & docs
Get Pricing & Lead Time
Tell us capacity, coil OD/ID/width, deck type & functions, cradle, power, mobility, speed, lining, control & environment. We’ll size the cradle geometry, motors & braking for your lines.
Note
We will verify saddle angle, spacing, deck width and stability margins on drawings to avoid coil damage.
