CYCRANE / Lifting slings & rigging supplies
Industrial Lifting Slings & Assemblies.
Flat webbing, endless round, alloy chain and wire rope slings for overhead lifting. Compare construction, define your working conditions and submit a clear technical enquiry.
- 04Main sling categories
- 1–4Leg assemblies by type
- One RFQSpecifications in one enquiry
WEBBING / ROUND / CHAIN / WIRE ROPESpecify first. Confirm before lifting.Share the load, hitch arrangement, angle, sling length and service environment.
- 01Choose sling
- 02Review rigging
- 03Send an RFQ
01 / Product range
Four sling types.
One procurement partner.
Source individual slings and complete multi-leg assemblies. Choose a type below to prefill the enquiry builder.
Webbing Slings
Flat polyester webbing for suitable protected surfaces. Configure rated requirement, length, eye design and edge protection.
Round Slings
Flexible endless round slings. Confirm load geometry, contact edges, jacket construction and material compatibility.

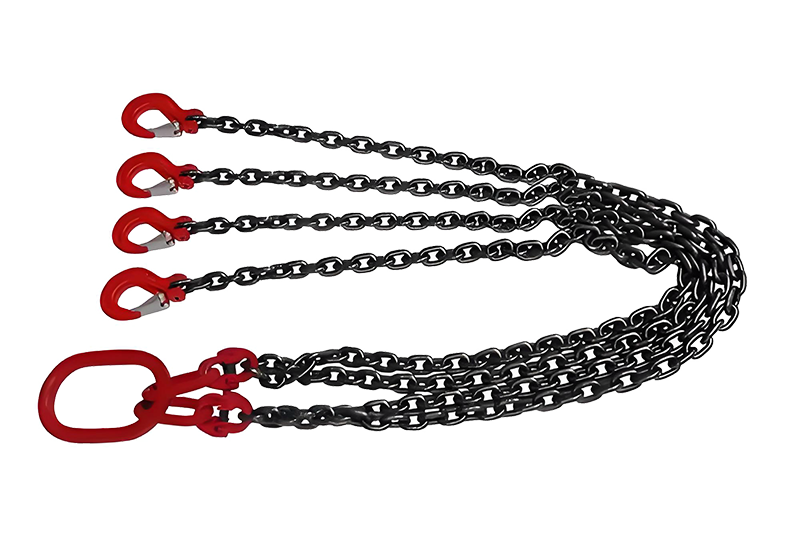

Chain Slings
G80/G100/G120 categories as listed in the original page, with suitable master links, hooks and leg arrangements.

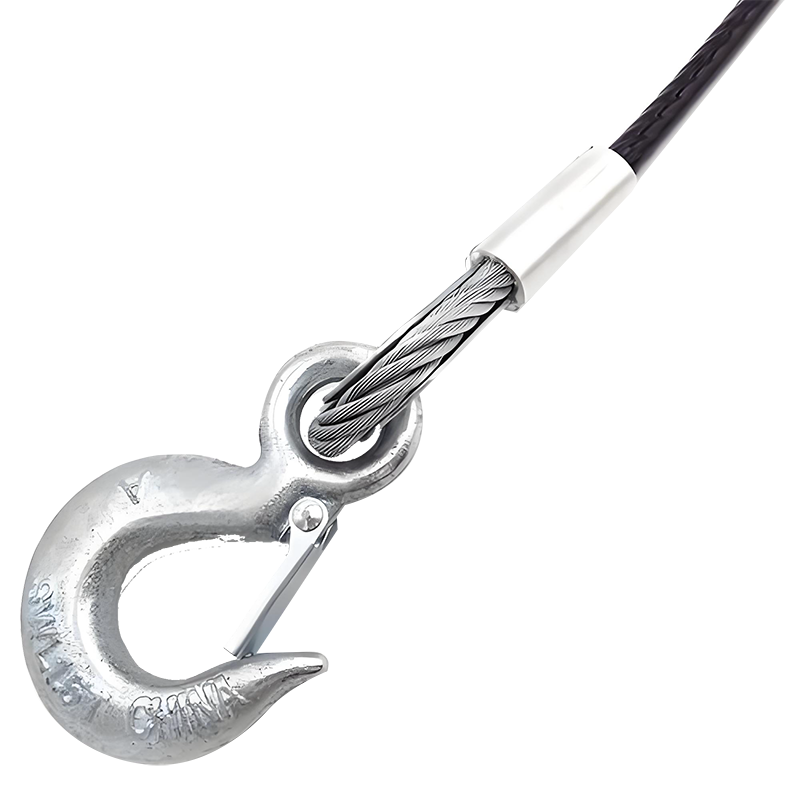

Wire Rope Slings
Eye-and-eye or assembled legs with thimbles and fittings. Specify rope construction, termination and finish.
02 / Correct rigging inputs
A sling is more
than its WLL.
The rated arrangement is affected by hitch method, leg geometry, material, end hardware and the manufacturer’s marking.
Hitch & angle
Confirm whether the assembly is straight, choker, basket or a multi-leg bridle. Angles must be defined consistently.
Service environment
Check edges, abrasion, chemicals, temperature and compatibility with the material and protective equipment.
Rating & documents
Use the actual sling tag and supplier’s approved capacity table. Request product-specific inspection and test documentation.
03 / Interactive technical enquiry
Build a clear
sling specification.
Inputs automatically update the engineering enquiry brief and preliminary purchasing budget. This form is not a safe working load certification.
Your lifting requirement
Choose a product type and provide project details. The summary changes as you edit.
01 / Sling & hitch arrangement
For a single vertical sling, leg angle does not affect the calculation.
02 / Construction & environment
03 / Protection & paperwork
04 / Order information
04 / Early purchasing context
Illustrative budget
for enquiry planning.
The reference values below come from the uploaded page’s example pricing formula. They are not actual factory prices, quotations, or confirmed product ratings. Final pricing depends on the manufacturer’s approved WLL, construction, fittings, testing, quantity and trade terms.
Request verified quotation ↗REFERENCE RANGE / USD • EXW ASSUMPTION
- Sling
- —
- Lift & capacity
- —
- Legs / length
- —
- Quantity
- —
- Options
- —
- Lead-time request
- —
Illustrative price based on original site’s unverified formula; no offer or availability is implied. See the summary above for safety limitations.
05 / Original imagery
Materials, hardware
& lifting arrangements.
Photographs retained from your previous page, now presented in a more consistent visual layout.
06 / Product scope
Technical data
at a glance.
The families and specifications listed below reflect the uploaded source. Certification, construction, WLL and applicability are confirmed for each individual ordered product.
| Products | Flat webbing, round sling, chain sling and wire rope sling |
|---|---|
| Chain grades | G80 / G100 / G120 categories, subject to product-specific confirmation |
| Hitch types | Vertical, choker, basket; engineered chain/wire multileg assemblies where appropriate |
| Standards referenced in source | EN 1492-1/2, EN 818, EN 13414 and ASME B30.9 as applicable — not a blanket compliance claim |
| Potential options | Protective sleeves, corner protectors, heat-resistant requests, termination hardware, ID tags |
| Verification & documents | Manufacturer WLL labels and applicable test, inspection, material records subject to the agreed order scope |
| Safety requirements | Compatible load path, lifting angle, suitable hitch rating, selected environmental protection and a competent rigging plan |
07 / Supply process
From lifting requirement
to delivered slings.
- 01 / RFQ
Define the task
Load, hitch, angle, length, operating conditions and required quantity.
- 02 / TECHNICAL REVIEW
Confirm the assembly
Manufacturer capacity chart, fittings and required product specification.
- 03 / QUOTATION
Approve price
Confirmed product design, unit pricing and expected production schedule.
- 04 / MANUFACTURE
Build & inspect
Assembly, marking and applicable inspection/test records.
- 05 / DELIVERY
Export supply
Packing, agreed documentation and delivery terms.
08 / Frequently asked
Before placing
your sling order.
Clear details help us quote the correct assembly and avoid unsuitable material or hardware substitutions.
Can this configurator approve a sling for lifting?
No. It collects requirements and estimates simplified tension or purchasing budget only. A certified sling WLL and permitted hitch arrangement must be confirmed using the actual product tag, manufacturer tables and an approved lift plan.
Does the angle mean angle from vertical?
No. The field uses degrees above the horizontal plane. A vertical leg is 90 degrees from horizontal. Lower angles can cause higher tension in load-bearing branches.
Are G80, G100 and G120 chains interchangeable?
No. Grade, diameter, end hardware, configuration and manufacturer-approved rating must all match the assembly. An automatic grade multiplier is not an adequate basis for selecting lifting equipment.
What if I need chemical or high-temperature resistance?
Include the operating environment and exact exposure conditions in your enquiry. Some sling materials may be unsuitable even with protective accessories; product-specific compatibility must be verified.
Can I send my existing sling label or drawing?
Yes. Please share the WLL tag, sling length, eye or fitting details, construction and available drawings, as well as the required documentation and quantity.
09 / Technical & commercial enquiry
Request pricing
& lead time.
Your selected configuration appears in the specification brief alongside the enquiry form. Include images, WLL tag information or rigging drawings when available.
Any guarantee, standard conformity, material documentation and inspection procedures are based on the final agreed specification and commercial offer.
Send a Slings RFQ.
The preview below updates automatically whenever you change the inputs.
Choose a sling above to prepare your RFQ.
