FEM/ISO • CRAB TROLLEY • HIGH DUTY

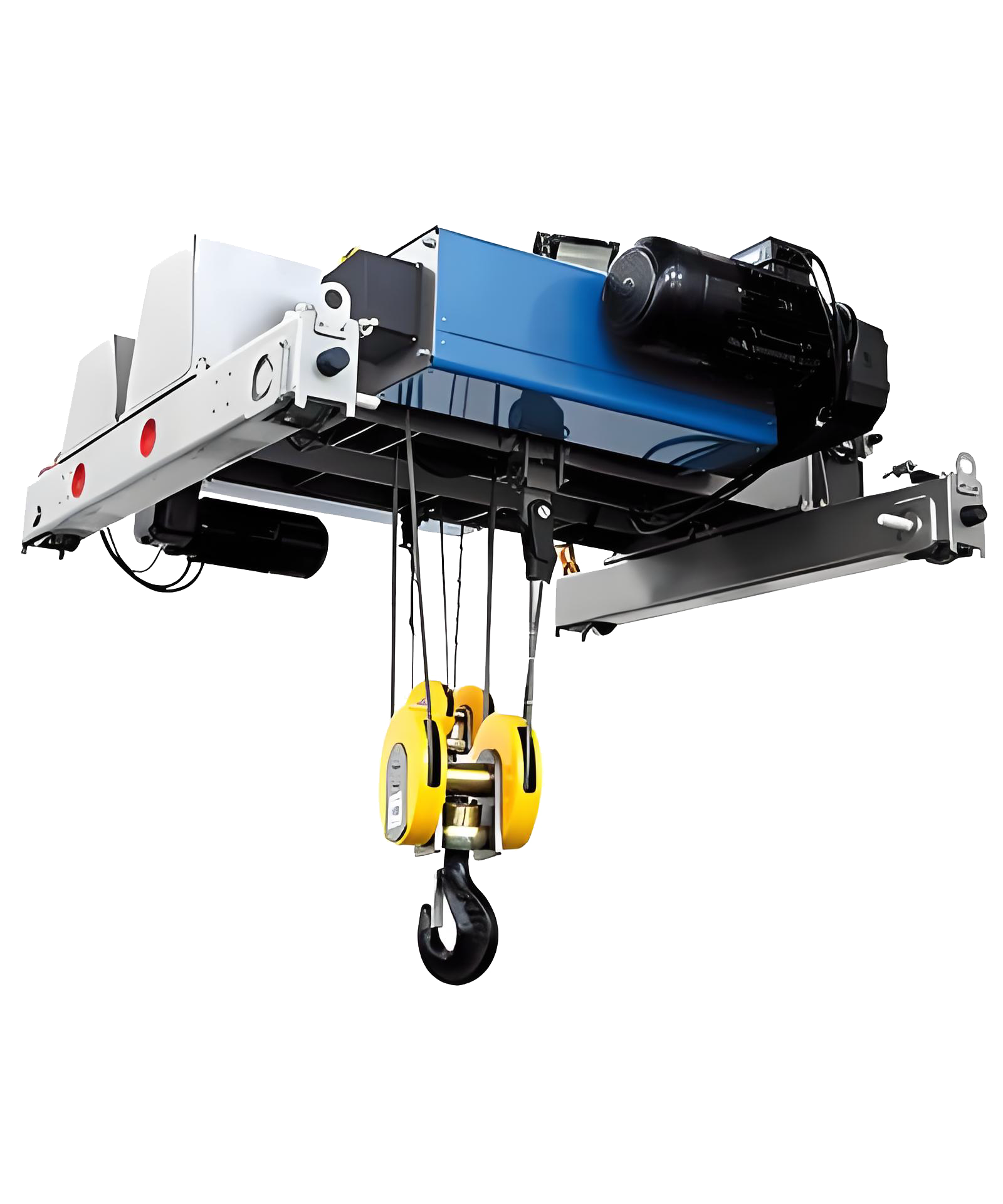

European Double-Girder Electric Wire Rope Hoist
10–80 t typical · Double-girder crab trolley · FEM/ISO M5–M7 · VFD hoist & travel · Optional twin hoist
- Short hook approach
- High duty FEM 2m/3m
- Load cell / anti-sway ready
- Overload & dual-limit
EU-style crab trolley hoist for bridge cranes & process lines · CE/ISO compliant · Factory load test
- ISO 9001
- CE Marking
- FEM 2m/3m
- 2-Year Warranty
- Spare Parts Support
High Capacity & Duty
Optimized gearing & bearings for 10–80 t, continuous cycles.

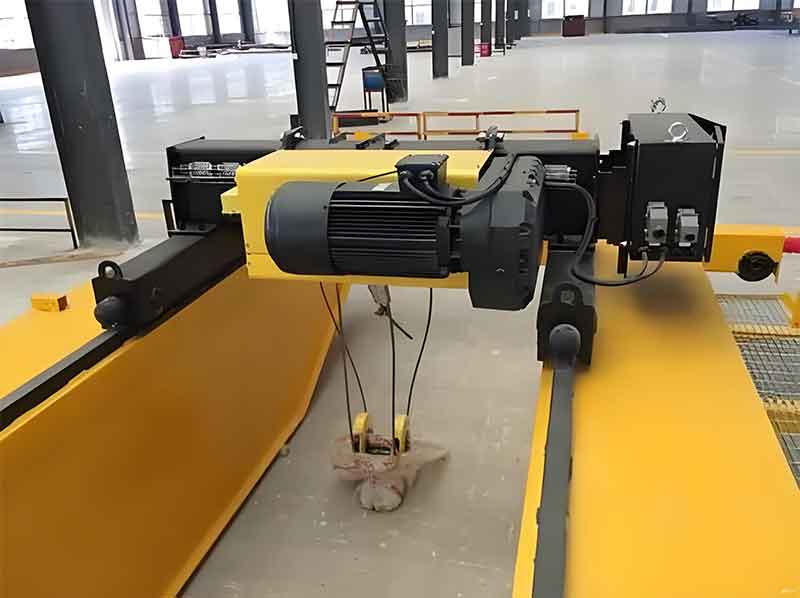

Short Hook Approach
Compact crab frame maximizes runway coverage.
Safety & Redundancy
Overload limiter, dual limits; twin brake/rope guide options.
Smart Options
Load cell, anti-sway, condition monitoring, remote diagnostics.
Where the Double-Girder Hoist Excels
- Heavy duty process cranes: steel, papermills, machining bays & assembly lines.
- Long spans: crab trolley provides stable travel and low wheel loads.
- Precision lifts: VFD hoist with creep speed for accurate positioning.
- Integration ready: overload monitoring, PLC handshakes, sway control.
Build Your Spec
Budget Estimate
Auto‑updates from “Build Your Spec”. Budgetary range (ex‑works). Final quote after drawings & duty confirmation.
- Capacity
- —
- Lift Height
- —
- Hoist Speed
- —
- Wheels
- —
- Crab Gauge
- —
- Reeving
- —
- Duty
- —
- Control
- —
- Environment
- —
- Quantity
- —
- Timeline
- —
Applications & Examples
Technical Specifications
| Type | European double-girder electric wire rope hoist – crab trolley running between girders |
|---|---|
| Rated Capacity | 10–80 t typical (custom up to 100 t) |
| Lift Height | 6–50 m typical |
| Hoisting Speed | 3–16 m/min (VFD or two-speed) |
| Trolley Speed | 10–50 m/min (VFD) |
| Reeving | 4/1, 6/1, 8/1 depending on load & lift |
| Duty Group | ISO/FEM M5–M7 (FEM 2m/3m) |
| Hook Approach | Left/right from ~220–320 mm (gauge/model dependent) |
| Crab Gauge | Rail center distance 1200–2800 mm (custom on request) |
| Motor & Protection | Class F, IP55 (IP65 optional); thermal, phase-loss & overload protection |
| Rope & Guide | High-grade wire rope with hardened guide & grooved drum |
| Limits & Safety | Upper/lower limit switches, overload limiter; options for load cell, anti-sway |
| Control | Pendant / Radio remote; PLC diagnostics optional |
| Power | 380/415/440V, 50/60Hz, 3Ph |
| Finish | Industrial epoxy; outdoor C3–C4 paint system |
| Docs | CE/ISO; FAT report with load & functional test |
From Inquiry to Commissioning
- 01 · SizingShare load, lift, speed, reeving, gauge & wheels
- 02 · ProposalGA drawing & budget; approach & wheel-load checks
- 03 · ManufacturingFAT with load & limit testing
- 04 · DeliveryCrating & logistics
- 05 · CommissioningOn‑site training & docs
Get Pricing & Lead Time
Tell us capacity, lift height, speed, wheels, gauge, reeving, duty, power & environment. We’ll optimize hook approach & wheel load for your crane.
Note
We verify rope layer, sheave D/d, hook approach, wheel loads and gauge on GA drawings before production.
