Underslung Electric Wire Rope Hoist
Heavy-duty, high-speed wire rope hoists—from compact low-headroom trolleys to double-girder units. Share capacity, lift height and duty class for quick sizing.
CYCRANE / Under-running lifting
Underslung Electric
Wire Rope Hoist.
Start with the beam.
Match the hoist to your space.
Plan an underslung electric wire rope hoist for below-beam running, workshop lifting or replacement work. Share the beam profile, available headroom and lifting task so the trolley arrangement can be reviewed together.
- 1–20 tCapacity discussion
- Below beamRunning arrangement
- Beam-firstFit review
- New installation review
- Replacement & retrofit
- Headroom & trolley fit
UNDERSLUNG HOISTS / BEAM & TROLLEY MATCHA clearer specification.From beam drawing to lifting requirements.
- 01Load & lift
- 02Beam & headroom
- 03Duty & controls
01 / Configuration directions
Below-beam lifting.
Defined by the installation.
Choose a starting direction and refine the specification. Beam geometry, trolley arrangement and available headroom need to be reviewed for the actual project.
STANDARD DIRECTION

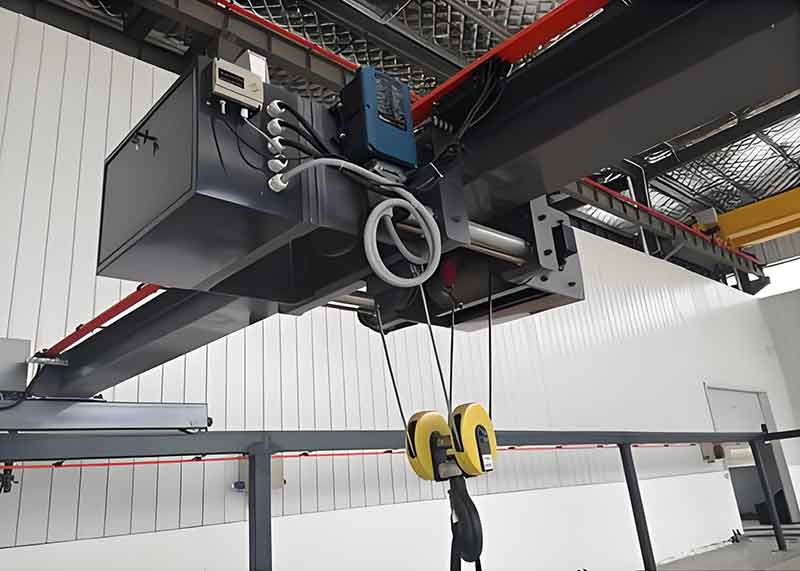

Straight-Run Beam
A starting point for a defined under-running beam route. Confirm flange width, beam profile, hook travel and trolley fit.
EXISTING INSTALLATION
Replacement / Retrofit
Compare the existing hoist, nameplate and installation dimensions with the required load, lift and available space.
PROJECT DIRECTION
Special Beam / Project Review
Review nonstandard beam conditions and a project-custom trolley. Supply a drawing and measured clearances before selection.
02 / Configure & plan the budget
Define your hoist.
Keep the beam in view.
Adjust the original 13 configuration fields. The per-hoist reference budget, selected price band and complete enquiry update together. Quantity bands are quotation inputs, not an order total.
Build Your Underslung Hoist Spec
Share the beam profile and measured flange width. If space is limited, include available headroom and required hook height.
The original duty labels are retained as enquiry choices; confirm ISO/FEM classification with the selected model. No beam compatibility or fixed headroom saving is assumed.
03 / Original reference bands
A first budget guide.
A defined scope comes next.
These original guide bands are retained separately from the live estimate. Highlighting follows the estimate’s upper value (≤3,000 / ≤4,300 / above 4,300); a match does not guarantee a price within the card.
Standard Discussion
US$ 2,180–2,980
A starting guide for lighter-capacity, clearly defined beam projects.
Closest original guide bandGeneral Project Review
US$ 2,980–4,180
A reference band for standard installation and replacement discussions.
Closest original guide bandHigher-Spec Review
US$ 4,180–5,980
A reference band for more demanding load, beam or trolley requirements.
Closest original guide bandAll amounts are equipment discussion references in USD. The live estimate can fall outside the guide cards. Send the exact quantity, beam drawing and destination for a project quotation.
04 / Technical parameters
Match the beam.
Confirm the working duty.
Nine original parameter rows retained for project discussion. Dimensions and the final trolley / hoist arrangement are confirmed against your installation.
| Product Type | Underslung Electric Wire Rope Hoist |
|---|---|
| Capacity Range | Common discussion range 1 t to 20 t |
| Lift Height | Usually customized according to project demand |
| Running Direction | Under-running beam / underslung crane arrangement |
| Duty Group | M3, M4, M5 available according to working condition |
| Control | Pendant control, wireless remote, or combined control |
| Power Supply | 380V 50Hz, 400V 50Hz, 415V 50Hz, 440V 60Hz and other export options |
| Beam Review | Beam flange width, beam drawing and site data can be confirmed before production |
| Optional Direction | Low-headroom optimization, custom trolley details, export electrical standard and project-based review |
Final trolley dimensions, beam fit, duty classification and supply scope are confirmed in the technical proposal.
05 / Product gallery
Look at the arrangement.
Bring the installation details.
Four original photographs from this product page. Confirm final dimensions, trolley fit and clearances from the selected model drawing.
Full product arrangement
Original product photograph. Final dimensions and supply scope follow project review.
Side view
Original product photograph. Final dimensions and supply scope follow project review.
Project view
Original product photograph. Final dimensions and supply scope follow project review.
Trolley and hoist detail
Original product photograph. Final dimensions and supply scope follow project review.
06 / Quotation preparation
Three practical steps.
One coordinated enquiry.
Provide the information available. The remaining installation and operating requirements can be reviewed with the quotation.
Describe the task
Load, lift height, hoisting speed, operating cycle and required quantity.
Show the beam
Profile, flange dimensions, headroom, runway drawing and hook travel limits.
Confirm the project
Power, controls, installation country and replacement nameplate or site photos.
07 / Before you specify
Questions for a clearer
underslung hoist enquiry.
Beam information and operating conditions guide the final selection.
Discuss your beam layout ↗What defines an underslung wire rope hoist arrangement?
The hoist and trolley are reviewed for running below a supporting beam. Beam profile, flange dimensions, trolley fit, load and available space determine the project arrangement.
Can I use the hoist on my existing beam?
Send the beam drawing or measured flange width and thickness, rated load, available headroom and site photos. Compatibility must be confirmed from the actual hoist and trolley dimensions.
Can a low-headroom trolley improve the available hook height?
A low-headroom direction can be reviewed when installation space is limited. Provide the required hook height and measured headroom; any benefit depends on the selected model and beam arrangement.
Does the quantity choice show a total order budget?
No. The original model adjusts a per-hoist reference range for the selected quantity band. It does not multiply by an exact quantity, and the 3–5 sets and bulk options are bands. Request a quotation for the exact project quantity.
Which selections change the live budget?
The original formula uses load, lift, hoisting speed, duty, beam direction, trolley and quantity band. Reeving, flange information, controls, power, environment and notes are recorded for quotation without separate price factors in this model.
What should I send for a replacement project?
Include the old hoist nameplate, beam and trolley dimensions, required load and lift, available space, power supply and installation photographs. Confirm duty classification and the final technical specification before ordering.
08 / Your underslung hoist enquiry
Tell us the lifting task.
Show us the beam.
Your selected configuration, builder notes and per-hoist reference budget are included with the enquiry. Add beam data, installation details and the exact project quantity.
- WhatsApp / phone+86 155 1554 5327
- Sales enquiriessales@cy-cranes.com
- Talk about your projectCall +86 155 1554 5327
Useful details: beam profile and flange dimensions, headroom, hook travel, old nameplate and site photographs. Use email or WhatsApp to share supporting drawings.
Request an Underslung Hoist Quote
Start with your email and destination. Add the project details you already know.
Review the configuration included with your enquiry
Prefer email? Send your configuration ↗
