European Low-Headroom Electric Wire Rope Hoist
Heavy-duty, high-speed wire rope hoists—from compact low-headroom trolleys to double-girder units. Share capacity, lift height and duty class for quick sizing.
CYCRANE / Compact European-style lifting
European Low-Headroom
Electric Wire Rope Hoist.
Measure the available height.
Plan the hook position you need.
Review a European low-headroom hoist for low buildings, retrofit cranes and compact lifting spaces. Match the required load and hook travel with the variant, reeving, Hmin target and actual beam or mounting dimensions.
- 1–20 tBuilder capacity
- 6–36 mLift reference
- 3 variantsMounting directions
- Available height review
- Hmin & end approach
- New build & retrofit
EUROPEAN LOW-HEADROOM / INSTALLATION ENVELOPEStart from the available space.Then define the hoist, hook path and duty.
- 01Load & lift
- 02Height & approach
- 03Mounting & controls
01 / Variant directions
Limited building height.
A defined lifting envelope.
Choose a starting variant, then refine the configuration. Photographs are references; actual Hmin, hook approach and mounting fit need the selected model drawing.
MONORAIL DIRECTION
Low-Headroom Monorail
Review a compact running arrangement for a defined beam. Confirm load, hook travel, trolley fit, actual Hmin and end approach.
HEIGHT-FOCUSED REVIEW
Ultra-Low Headroom
Discuss a tighter installation envelope using measured available height and a required hook position. Confirm the selected model dimensions.
FIXED MOUNTING
Stationary / Foot-Mounted
Review a fixed mounting arrangement with the supporting structure and vertical lifting path. No trolley movement is assumed.
02 / Configure & plan
Set the lifting task.
Review the available space.
Keep all 13 original configuration fields together. The budget, original Hmin heuristic and enquiry update with your choices. Add your measured height and actual Hmin target in the project notes.
Build Your European Low-Headroom Spec
Enter measured clearance and required hook position in the notes. The Hmin heuristic is a starting reference, not a verified dimension or installation approval.
For Project quantity, the original model shows an illustrative 4-hoist scenario. Add the exact quantity for a quotation. Timeline options record your requested schedule and are not delivery commitments.
03 / Technical specifications
Hoist, hook and structure.
One installation review.
The 13 original technical rows are retained as product references. Model-dependent dimensions, protective equipment and documentation scope are confirmed in the technical proposal.
| Type | European low-headroom electric wire rope hoist for monorail, ultra-low-headroom or stationary use |
|---|---|
| Rated Capacity | 1–20 t typical, custom projects up to 32 t |
| Lift Height | 6–36 m typical |
| Hoisting Speed | 4–16 m/min, VFD or two-speed depending on project direction |
| Trolley Speed | 10–40 m/min with smoother VFD travel direction for precise positioning |
| Reeving | 4/1, 6/1 and 8/1 depending on load, lift and hook travel requirement |
| Duty Group | ISO / FEM M5–M7 typical, with compact workshop and higher-cycle options |
| Headroom & Approach | Hmin from about 520 mm for ultra-low direction and about 680 mm for standard low-headroom direction, with end approach commonly around 110–160 mm depending on model |
| Motor & Protection | Class F motor, IP55 standard, overload protection, upper and lower limit switches, thermal and phase-loss protection |
| Wire Rope & Guide | High-grade wire rope with hardened rope guide and grooved drum arrangement |
| Control | Pendant control, radio remote and optional PLC / diagnostic-oriented configuration |
| Power Supply | 380V / 50Hz / 3Ph, 415V / 50Hz / 3Ph or 440V / 60Hz / 3Ph for export coordination |
| Finish & Documents | Industrial epoxy finishing, outdoor protection options, CE / ISO documentation and FAT load test support |
The original table cites about 520/680 mm Hmin and 110–160 mm approach as model-dependent references. These are not universal fit limits. Custom discussion up to 32 t is separate from the 1–20 t budget tool; confirm actual dimensions, ratings and documentation for the selected model.
04 / Product gallery
Compare the compact layout.
Confirm the actual dimensions.
Four original product photographs. Use the selected technical drawing for the installation envelope and mounting interfaces.

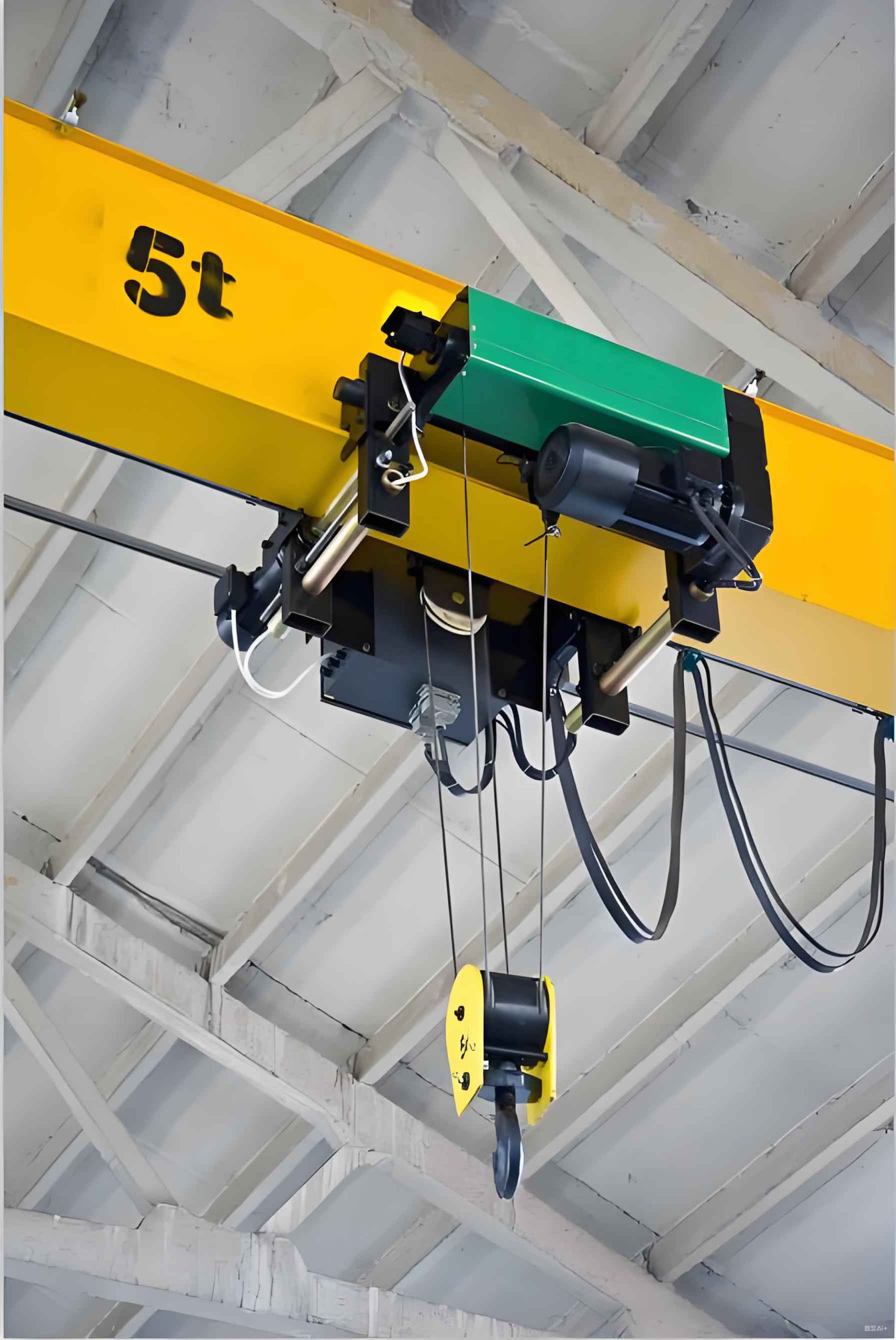

European-style low-headroom hoist
Original product reference. Final mounting and dimensions follow the selected configuration.
Compact arrangement
Original product reference. Final mounting and dimensions follow the selected configuration.

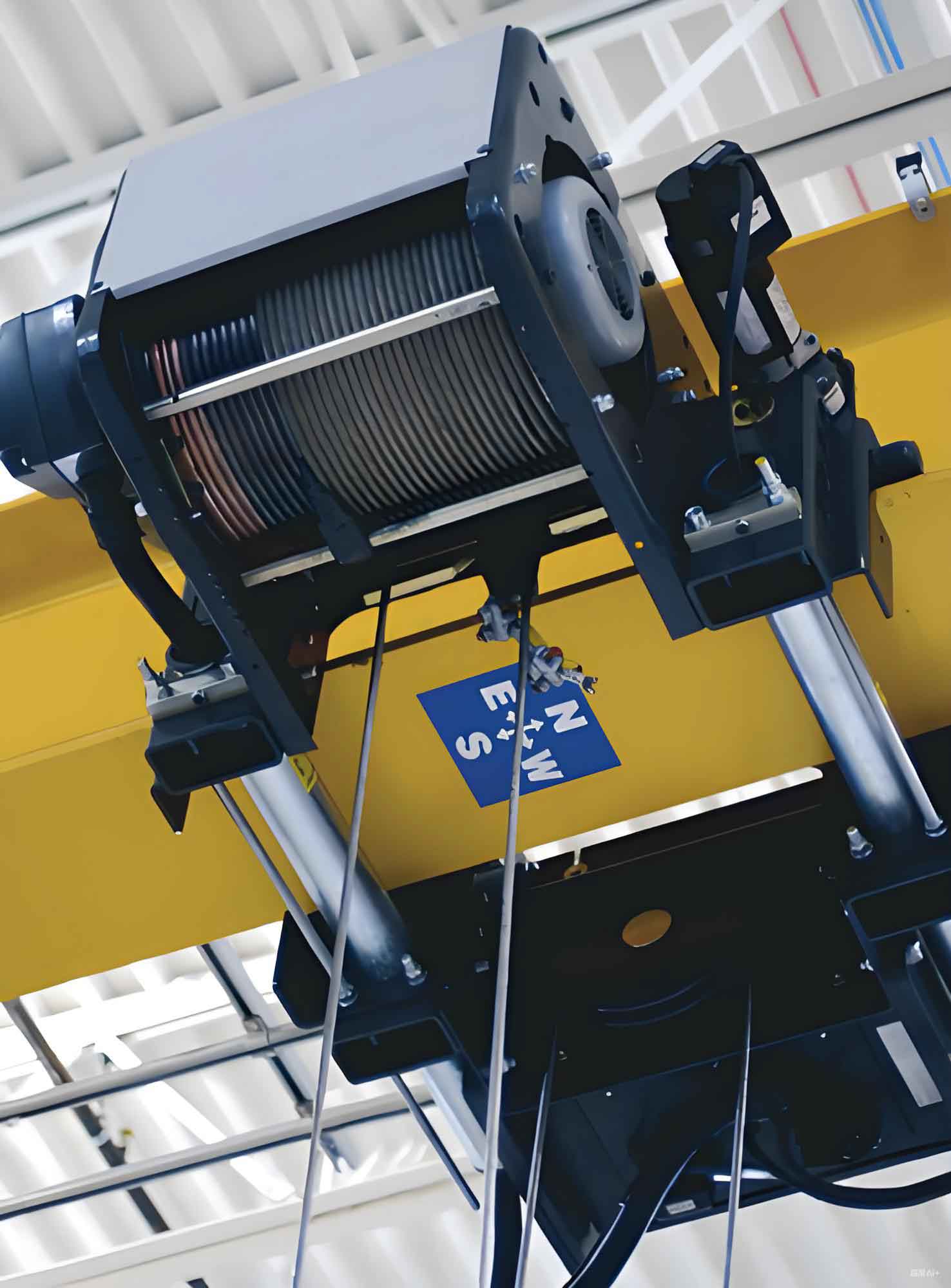

Retrofit product reference
Original product reference. Final mounting and dimensions follow the selected configuration.
Hoist structure view
Original product reference. Final mounting and dimensions follow the selected configuration.
05 / Building & retrofit review
A low building or existing crane.
A measured starting point.
Review available height, hook coverage and duty before confirming the compact hoist arrangement. The original seven quotation inputs are retained below.
WHAT TO SEND
Height, approach and working conditions.
- Required capacity and lifting height
- Target Hmin, available building clearance and any existing crane dimensions
- Preferred variant such as low-headroom monorail, ultra-low or stationary direction
- Power supply and installation country
- Indoor, outdoor, high-temperature or dusty environment
- Duty expectation such as normal workshop use or heavier daily cycles
- Drawings, site photos or old crane dimensions for faster configuration review
06 / Before you specify
Questions for your
European low-headroom hoist.
Measured clearance and a defined lifting task guide the final configuration.
Discuss your height target ↗What is Hmin and how should I use the displayed number?
The displayed number preserves the original page’s layout heuristic. Treat it as an unverified discussion reference. Confirm the measurement points and actual Hmin from the selected model drawing before assessing your installation.
Can the Ultra-Low choice guarantee a specific height saving?
No. The actual result depends on the hoist model, reeving, mounting and structure. Send the available clearance, required hook position and existing dimensions so the fit can be reviewed.
Does the budget show unit price or quantity total?
For 1, 2 or 3 sets, the main range is the original model total for that number of hoists. Multiple-set selections also show an equivalent per-hoist range. Project quantity shows an illustrative four-hoist scenario; the actual quantity remains to be specified.
Is the requested schedule a confirmed lead time?
No. The original timeline options record your target. Production and delivery are confirmed in the quotation after the configuration, approval requirements and supply scope are reviewed.
Does the calculator cover custom 32 t projects?
No. The original technical reference mentions custom projects up to 32 t, while the budget inputs cover 1–20 t and 6–36 m. Requirements outside the tool need a separate technical review and quotation.
What should I send for a retrofit project?
Send available building clearance, target Hmin, hook approach limits, beam or mounting dimensions, old nameplate, drawings and site photos. Add power, operating cycle, environment and exact quantity.
07 / Your European low-headroom enquiry
Tell us the lifting task.
Show us the available clearance.
Your configuration, original Hmin heuristic, budget and requested schedule are included with the enquiry. Add measured clearance, required hook position, actual quantity and any site drawing.
- WhatsApp / phone+86 155 1554 5327
- Sales enquiriessales@cy-cranes.com
- Talk about your projectCall +86 155 1554 5327
Useful files: available-height sketch, target Hmin with reference points, end approach, beam or mounting drawing, old nameplate and installation photos.
