ELECTROMAGNET • BATTERY MAGNET • ELECTRO-PERMANENT
Lifting Magnets & Magnetic Beams
Plates · Profiles · Coils · Scrap | 50–100% ED controllers · Battery backup · Flux monitoring
- Plate & Beam Magnets
- Circular Scrap Magnets
- Electro-Permanent (EPM)
- Battery Magnets
Fail-safe controls · EN 13155 practices · CE/ISO · FAT with photos/video · Spare parts support
- CE / ISO
- EN 13155 Practices
- 2-Year Warranty
- Spare Parts Support
Magnet Types
Electromagnets (wired), Battery magnets, and Electro-permanent (EPM) with low standby power.

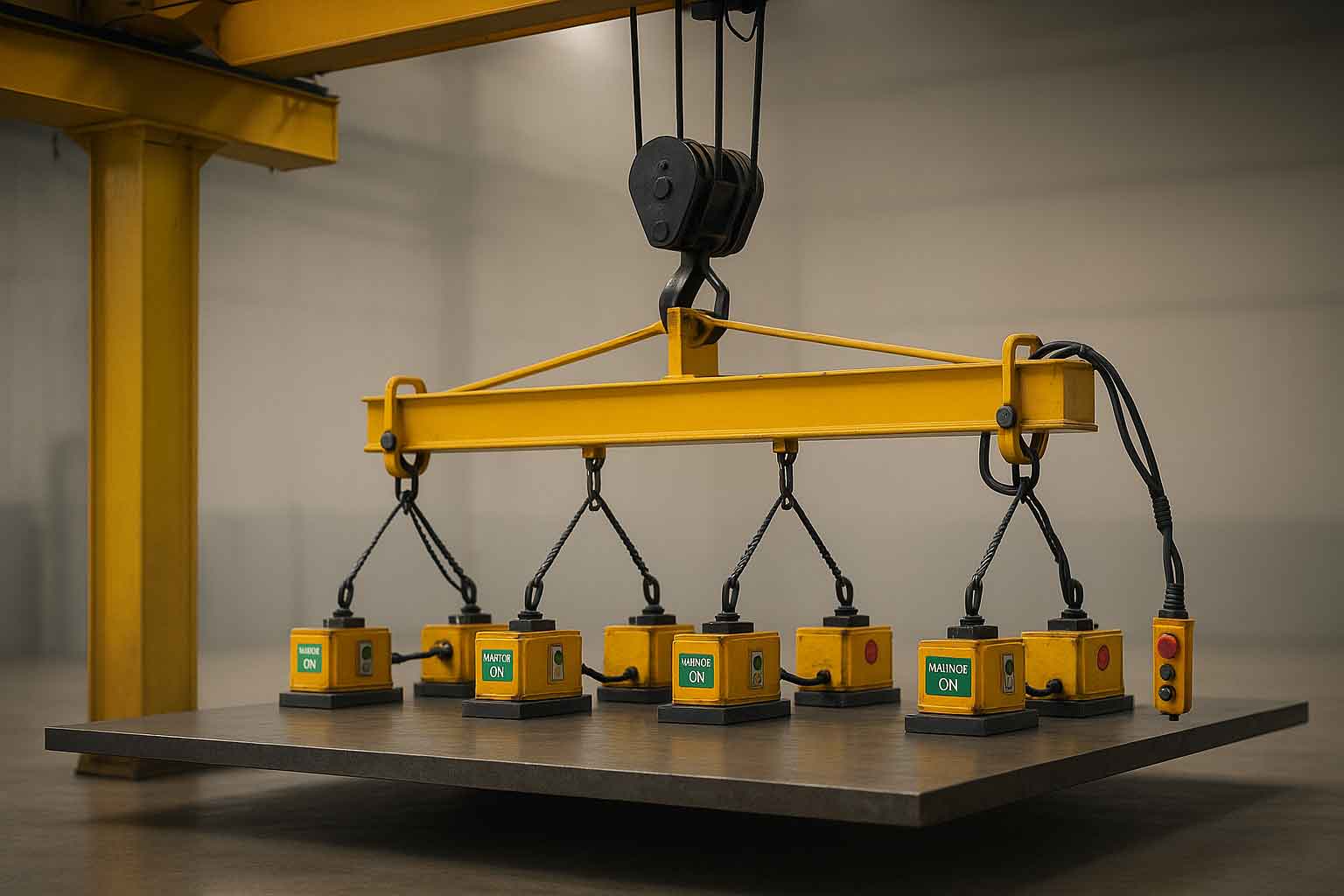

Beam Systems
Single/dual beams with multiple magnets, individual switching & flux monitoring.
Safety
Fail-safe release logic, flux hold check, backup battery (EO), audible/visual alarms.
Heavy Duty
50–100% ED controllers, hot-work packages, high-temp insulation, IP55/IP65.
Fast, Mark-Free Handling
- Plates/Profiles: no slings, fast single-person picks; minimized surface marks.

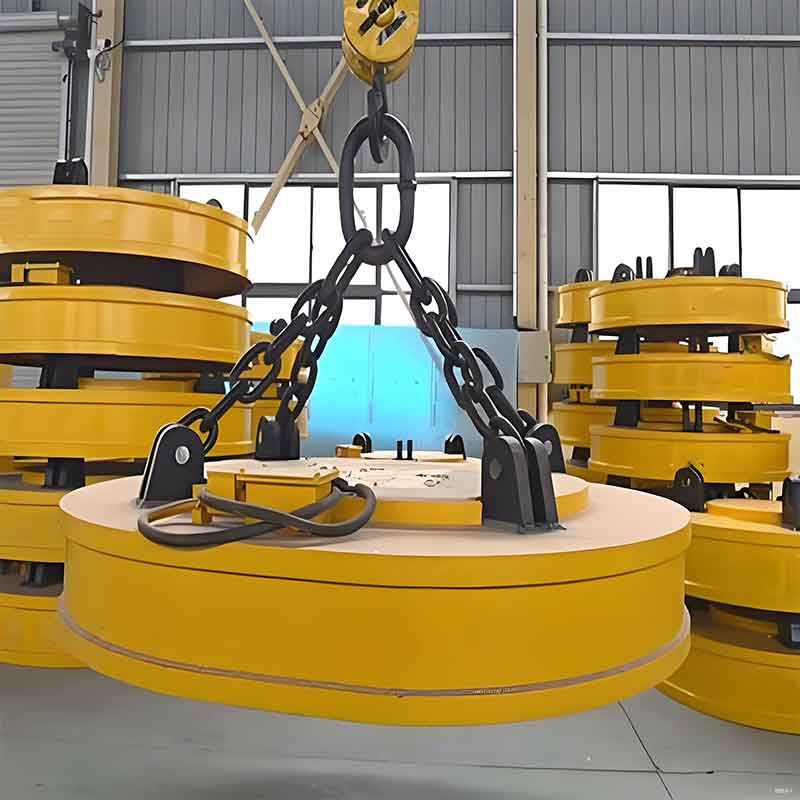

- Scrap: high fill factor circular magnets with robust ribs & deep field.
- Coils: fixed-pole or EPM with pole shoes for eye-horizontal/vertical.
- Controls: flux check, pre-lift alarms, demag cycle & soft release.
Build Your Spec
Budget Estimate
Auto-updates from “Build Your Spec”. Budgetary range (ex-works). Final quote after drawings & tests.
- Type
- —
- Application
- —
- Workpiece
- —
- ED
- —
- Options
- —
- Quantity
- —
- Timeline
- —
Applications & Examples
Technical Specifications
| Types | Electromagnets (wired with rectifier/controller), Battery magnets (integrated power), Electro-permanent magnets (EPM). |
|---|---|
| Applications | Plate/slab, profile/beam bundles, coils (eye horizontal/vertical with pole shoes), scrap/loose steel. |
| Controllers | 50–100% ED, soft release/demag, pre-lift alarm, flux monitoring, individual magnet switching (beams). |
| Safety | Fail-safe logic, backup battery for EO, audible/visual alarms, interlocks, load test records. |
| Temperature | Standard <80°C; high-temp packages for 80–250°C (insulation & cooling). |
| Protection | IP55–IP65, armored cables, shock-resistant housings, replaceable pole shoes. |
| Docs | GA drawings, controller schematics, FAT photos/video, manuals. |
| Notes | Capacity depends on surface, air gap, thickness, coverage & temperature; final WLL after tests with safety factors per application. |
From Inquiry to Commissioning
- 01 · SizingShare material, size, thickness & surface condition
- 02 · ProposalMagnet/beam drawing & budget
- 03 · ManufacturingCoil/pole machining, housing & controller assembly
- 04 · FATFlux check & load tests; documentation pack
- 05 · CommissioningOn-site or remote guidance
Get Pricing & Lead Time
Tell us type, application, workpiece size & thickness, surface condition, duty (ED), temperature, magnets on beam & options. We’ll size pole area, controller & safety logic to your crane.
Note
Budget model assumes clean flat steel and full pole coverage. Final WLL & safety factors confirmed after on-site tests.
