CONTAINER YARD HANDLING

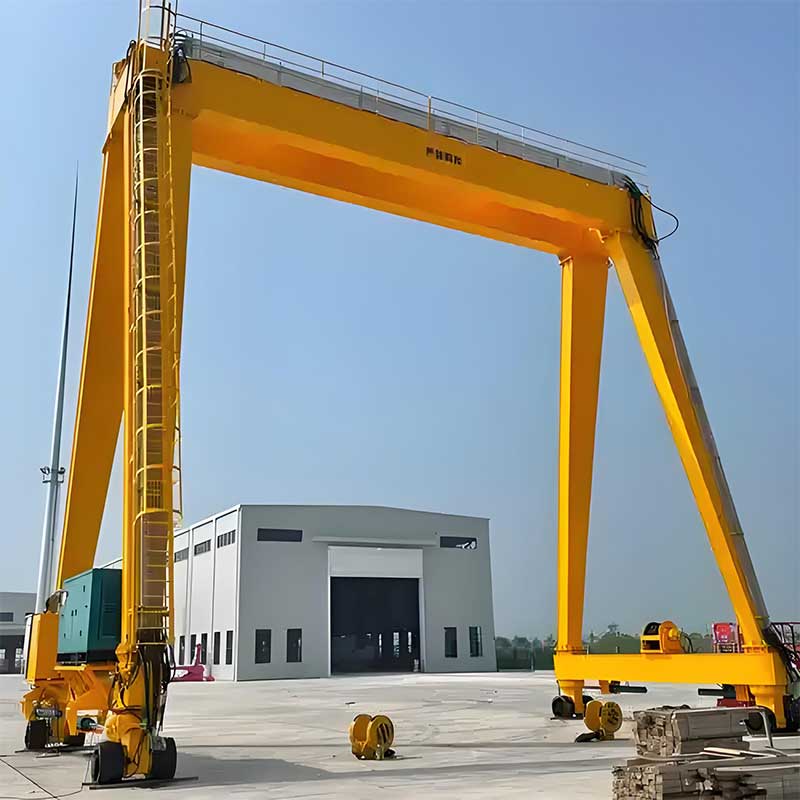

Rubber‑Tired Gantry Crane (RTG)
30–50 t SWL under spreader · 4–8 tier stacking · 8/16‑wheel · Precision anti‑sway
- 20/40/45 ft telescopic spreader
- Auto‑steering & stack guidance
- Diesel‑electric / Hybrid / Full‑electric
- Collision & truck‑lane safety
For seaports & ICDs · Remote or cab control · Energy recovery & diagnostics · 2‑year warranty
- ISO 9001
- CE Marking
- FEM/ISO M6–M8
- 2‑Year Warranty
- Spare Parts Support
High Throughput
Fast hoist/trolley/gantry with anti‑sway to keep boxes moving.
Accurate Stacking
Laser/vision guidance, auto‑steering & truck‑lane approach control.
Power Choices
Diesel‑electric, hybrid genset + battery, full‑electric cable reel.
Safety & Uptime
Collision avoidance, anemometer, diagnostics, remote assistance.
Why Rubber‑Tired Gantry?
- Flexible yard layout: no rail works; reconfigure stacks as throughput grows.
- Lane productivity: truck‑lane control & auto‑steer reduce cycle times.
- Lower emissions: hybrid/full‑electric options with energy recovery.
- Operator‑friendly: cab or remote control with clear diagnostics.
Build Your Spec
Budget Estimate
Auto‑updates from “Build Your Spec”. Budgetary range (ex‑works). Final quote after drawings & yard review.
- SWL
- —
- Tiers
- —
- Clear Span
- —
- Lift Clearance
- —
- Wheels
- —
- Power
- —
- Guidance
- —
- Control
- —
- Duty
- —
- Env
- —
- Spreader
- —
- Quantity
- —
- Timeline
- —
Applications & Examples
Technical Specifications
| Type | Rubber‑tired gantry crane (RTG) with telescopic container spreader |
|---|---|
| SWL under Spreader | 30–50 t |
| Stacking | 4–8 tiers; clear span 18–30 m (rows + truck lane as layout) |
| Wheel Arrangement | 8 or 16 wheels; auto‑steering modes |
| Power Options | Diesel‑electric / Hybrid (genset + battery) / Full‑electric (cable reel) |
| Guidance | Anti‑sway; vision/laser guidance; auto‑steering; collision avoidance |
| Control | Cab or remote; PLC interlocks; diagnostics |
| Typical Speeds | Hoist 12–30 m/min; Trolley 60–120 m/min; Gantry 100–150 m/min (project‑specific) |
| Duty Group | ISO/FEM M6–M8 |
| Environment | Seaport/marine coating; inland depot; cold‑climate options |
| Safety | Overload limiter, limit switches, e‑stop; anemometer; truck‑lane protection |
| Spreader | Telescopic 20/40/45 ft; rotator & side‑shift optional |
From Inquiry to Commissioning
- 01 · Yard StudyShare stack plan, lane width & throughput
- 02 · ProposalGA drawing, energy package & budget
- 03 · ManufacturingFAT report with photos/video
- 04 · DeliverySea/rail/road logistics
- 05 · CommissioningOn‑site or remote guidance
Get Pricing & Lead Time
Tell us SWL, tiers, span, lift clearance, wheels, power system, guidance, control, duty, environment & spreader. We’ll tailor speeds, energy & safety for your yard.
Request a Quote
Share your details and specs. We’ll size the RTG and reply with pricing & lead time.
