CYCRANE / Intermodal yard handling
Rail-Mounted
Gantry Crane (RMG)
Match your rail-mounted gantry crane to the container yard. Configure capacity, row coverage, stacking clearance, rail gauge and automation, then review a live budget and request an engineering proposal.
- Capacity options
- 40.5–65 t
- Container rows
- 5–12 rows
- Stacking clearance
- 1-over-3–6
40.5 t single lift · 50–65 t twin-lift options · Email your yard plan ↗
- ISO 3874 / 668
- FEM/ISO M6–M8
- CE marking
- 2-year warranty
- Global spare parts
RAIL-MOUNTED GANTRY / RMG- 01Capacity
- 02Rail gauge
- 03Rows & stacking
01 / Designed around your terminal

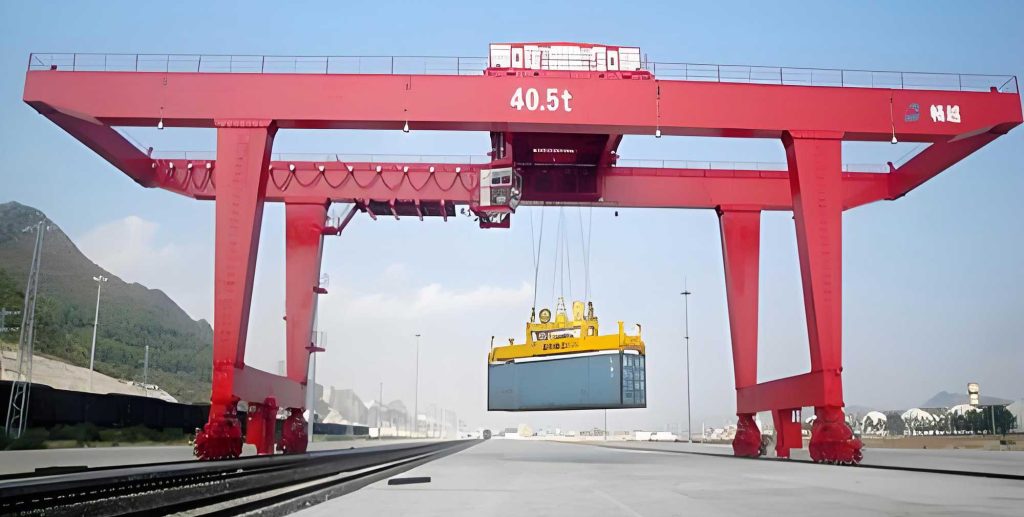

Rail-mounted precision.
Connected yard operations.
RMG cranes operate on fixed rails across container stacks, truck lanes and intermodal loading positions. Define the row layout, required clearances, outreach and operating cycle to review the mechanical and control scope.
Choose a telescopic or twin-lift spreader and the right automation package for your container mix. Yard drawings help confirm wheel loads, rail interfaces and coverage.
Explore your configuration ↗- 01 / COVERAGE
Yard geometry
5–12 container rows plus truck lane, with optional left and right cantilevers.
- 02 / HANDLING
Container spreaders
ISO 20/40/45 telescopic spreaders and optional twin-lift 2×20 handling.
- 03 / CONTROL
Assisted positioning
Anti-sway/skew, stack profiling, truck positioning and collision-avoidance options.
- 04 / INTEGRATION
Terminal interfaces
TOS, OCR/RFID and guidance functions reviewed against your operating system.
02 / Your configuration & budget
Build your spec.
See your budget estimate.
Move the sliders and choose your options. The budget, quantity basis and full configuration update together. Send the selected settings for engineering review.
RMG Project Configuration
Set yard dimensions, spreader, equipment and project details.
Lifting capacity and single/twin-lift arrangement require engineering confirmation.
Container rows plus truck lane; share your yard layout.
4–7 levels correspond to 1-over-3 through 1-over-6 clearance.
Rail centre-to-centre distance.
Check the selected dimensions and enter a whole crane quantity from 1 to 999.
Timeline is your requested schedule. Design, delivery and interfaces are confirmed in the project quotation.
03 / Technical specifications
Review your RMG options.
Use these parameters to plan the equipment scope. Final geometry, lifting arrangement and operating performance follow engineering review.
| Type | Rail-mounted gantry crane (RMG) for ISO containers |
|---|---|
| SWL | 40.5 t single lift (50–65 t twin-lift option) |
| Row Span | 5–12 container rows + truck lane |
| Rail Gauge | 18–45 m |
| Stacking Height | 1-over-3 to 1-over-6 (4–7 levels) |
| Cantilevers | 0–12 m left/right (optional) |
| Spreader | ISO 20/40/45 telescopic; twin-lift 2×20 |
| Speeds | VFD hoist/trolley/gantry; regenerative option |
| Automation | Manual (cabin), Assisted (sway/skew, profiling), Semi-auto (TOS) |
| Guidance/Safety | Anti-sway/skew, collision avoidance, truck positioning, stack profiling |
| Power | Busbar or MV cable reel; energy metering |
| Environment | Standard or marine/corrosive packages |
| Integration | TOS interface, OCR/RFID, DGPS/RTK |
| Options | LED lighting, walkway/platforms, remote monitoring |
The configurator retains the 35–65 t selection range. The typical product range is 40.5 t single lift with 50–65 t twin-lift options; confirm the lifting arrangement and capacity together.
04 / Applications & examples
Container yard coverage.
Share a yard plan with container rows, truck lanes, rail interfaces and required loading positions to review the arrangement.
05 / From inquiry to commissioning
A clear path to your RMG project.
Confirm layout, operating cycle, drawings, terminal interfaces and delivery scope before production.
- 01 / LAYOUT
Share your yard data
Capacity, rows, rail gauge, stacking and outreach.
- 02 / PROPOSAL
Review the arrangement
GA drawings, operating scope and project budget.
- 03 / PRODUCTION
Confirm & inspect
Fabrication, assembly and factory acceptance checks.
- 04 / DELIVERY
Plan the shipment
Cargo dimensions and sea, rail or road logistics.
- 05 / COMMISSIONING
Arrange the support
Installation, testing, training and support as agreed.
06 / Before you enquire
Planning your
container yard?
Clarify lifting, stacking and terminal interfaces before the firm quotation stage.
Discuss your RMG project ↗What information is needed for an RMG quotation?
Please send safe working load, container rows, truck lanes, rail gauge, stacking clearance, cantilever lengths, quantity, available power and operating cycle. A yard drawing helps confirm the arrangement and wheel-load requirements.
Can I choose a telescopic or twin-lift spreader?
The listed options include an ISO 20/40/45 telescopic spreader and twin-lift 2×20 handling. Capacity, container mix and operating requirements determine the final lifting arrangement.
What does 1-over-3 to 1-over-6 mean?
The clearance is selected to move a container over the stated stack height. The configurator shows 4–7 levels alongside the corresponding 1-over-3 through 1-over-6 selection. Final dimensions depend on the container sizes and required clearances.
Are anti-sway controls and TOS interfaces available?
Assisted anti-sway/skew, stack profiling, collision-avoidance packages and TOS integration are listed options. Interface scope must be reviewed against your terminal software, sensors and operating workflow.
Is the displayed estimate a final price?
It is a reference EXW equipment budget for the selected quantity. Final quotation follows drawings, operating duty, options, terminal interfaces and commercial scope confirmation.
07 / Get pricing & lead time
Turn your configuration
into a rail-mounted crane proposal.
Send your selected crane settings and yard layout. Our team will review coverage, lifting arrangement, operating duty and interfaces for your quotation.
