Workstation lifting · Configured for your site
Floor-Mounted
Jib Crane
Bring lifting coverage to the workstation. Configure a pillar jib crane around your load, working radius and available height.
Manual or electric motions · Chain / wire rope hoist options

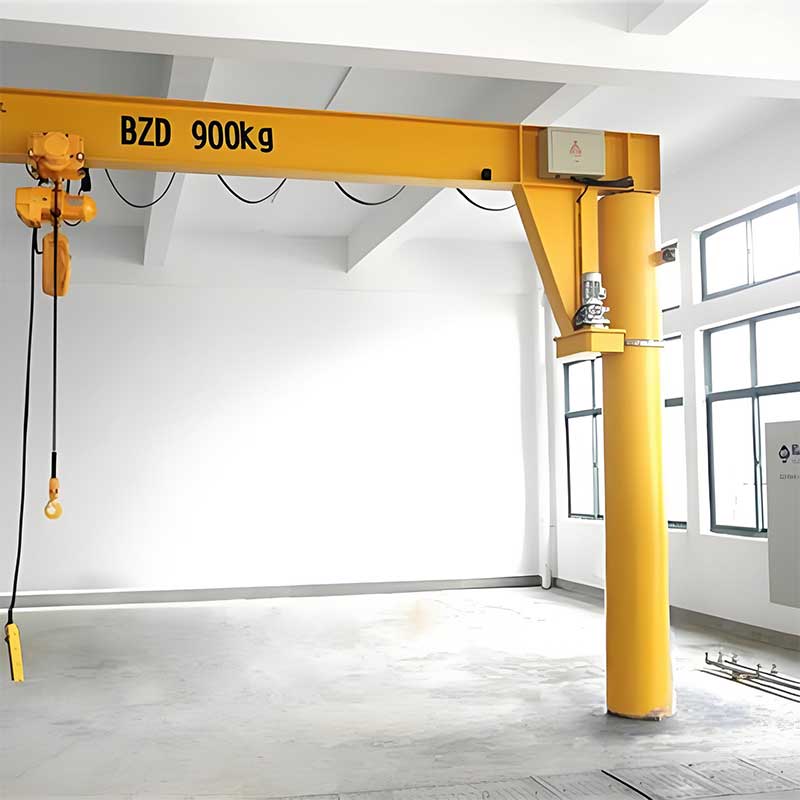

Lift where the work happens.
Serve assembly cells, machines and loading points with a rotating boom. Select the working radius around the actual workstation layout.
Choose the motions you need.
Manual travel for simple positioning, or electric trolley and slewing options. Select hoist speed and headroom for the task.
Plan the crane and its foundation.
Match the column, boom and anchors to your site. Existing slabs and new foundations need a project-specific mounting review.
01 / Configure your crane
Your workstation.
Your lifting specification.
Choose your project requirements. The selection summary and budget update together, ready to include in your enquiry.
Crane configuration
These are enquiry parameters. The maximum capacity, outreach and height are not guaranteed to be available together. Final design, floor loads and mounting require technical confirmation. Requested timelines are subject to production availability.
02 / Workshop applications
A dedicated lifting zone
around your process.
A pillar jib creates local lifting coverage without relying on an overhead building runway. Check the swing envelope, access routes and obstructions when planning the layout.
- Assembly & maintenancePosition components, tooling and service parts within the work cell.
- Machine loadingMove workpieces between a staging point and the machine.
- Packing & material handlingSupport repeated lifts at defined transfer or packing stations.
03 / Technical reference
Floor-mounted jib crane specifications.
Use these ranges to define your enquiry. We will confirm the compatible capacity, outreach and height for your selected design.
| Crane type | Floor-mounted / pillar jib crane |
|---|---|
| Rated capacity | 0.25–10 t; rated load and outreach are selected together |
| Boom outreach | 2–12 m, subject to configuration review |
| Under-boom height | 2–10 m; usable hook height depends on hoist headroom |
| Slewing range | 180° / 270° / 360° |
| Slewing & trolley | Manual push or electric drive |
| Boom options | I-beam straight boom; articulated / light-rail designs on request |
| Hoist | Electric chain, single / dual speed (VFD); wire rope option |
| Mounting | Foundation-bolted anchor cage; base-plate anchors subject to slab verification |
| Power supply | 380V/50Hz/3Ph; 415V/50Hz/3Ph; 460V/60Hz/3Ph |
| Power feed | Festoon cable; slip-ring option for continuous 360° rotation |
| Duty group | ISO/FEM M3–M5, selected for the application |
| Safety configuration | Overload limiter, slew limit stops and emergency stop; confirm the supplied scope |
| Finish | Indoor epoxy; outdoor C3–C4 system; clean-area options |
| Other options | Low-headroom hoist, radio remote, stainless hardware, lighting |
Project-specific duty classification, documentation, safety scope and installation requirements are confirmed in the proposal. Hazardous-area configurations require a separate review.
04 / Project workflow
From your requirements to a site-ready plan.
- 01
Sizing
Load, outreach, height and floor details.
- 02
Proposal
Crane layout, mounting plan and quotation.
- 03
Manufacturing
Production and agreed inspection / load test.
- 04
Delivery
Packing and logistics for your destination.
- 05
Installation
Foundation preparation and installation guidance.
Before you order
Practical questions.
Clear requirements.
Can this jib crane be bolted to an existing floor?
A base-plate solution may be possible after checking concrete thickness, strength, reinforcement, edge distances and crane loads. Send floor drawings or site details for a mounting review.
Is under-boom height the same as lifting height?
No. The hoist and trolley take up headroom below the boom. Tell us the required hook height and available ceiling height so the layout can be checked.
Can I choose 360° rotation and electric slewing?
Both are available as configuration options. Confirm surrounding obstructions and whether continuous rotation is needed; the power-feed arrangement must suit the selected rotation.
What does the budget estimate include?
It is a planning estimate for the selected crane quantity on an EXW basis. Freight, duties, civil works and installation are excluded. The final supply scope and price are confirmed in the quotation.
What information should I send for a firm quotation?
Provide capacity, outreach, under-boom height or required hook height, power supply, quantity and destination. A layout photo or drawing and floor data help us check coverage and mounting.
Can this be used outdoors or in hazardous areas?
Select the environment and describe the conditions. Outdoor coating, electrics and hazardous-area requirements need a separate technical review. An anti-spark option alone does not establish explosion protection.
05 / Request your proposal
Get a quotation
for your workstation.
Send your requirements for a crane layout, equipment price and lead time. Your selected configuration is included in the form below.
For a mounting review, prepare your floor or foundation details.
For a coverage check, send a workshop layout or site photograph.
Documents and any special requirements can be emailed directly.
Tell us about your project
Contact name and email are all you need to start.
