Crane Hooks & Hook Blocks.
Forged single and double hooks, laminated and foundry designs, plus complete hook block assemblies. Configure rope, reeving, bearings and options for your next replacement or crane project.
- 1–500 tOriginal listed capacity range
- 4 TypesSingle / Double / Foundry / Laminated
- One RFQTechnical specification summary
FORGED HOOKS / LAMINATED HOOKS / SHEAVE BLOCKSFrom a replacement hook to a complete lifting block.Bring your rated capacity, rope data, falls, drawings and service conditions.
- 01Select hook type
- 02Configure reeving
- 03Send your RFQ
01 / Product range
Lifting attachments
for demanding duty.
Choose a hook-only replacement or a full block assembly. The selected style can be transferred directly to your specification enquiry.
01 / Forged range

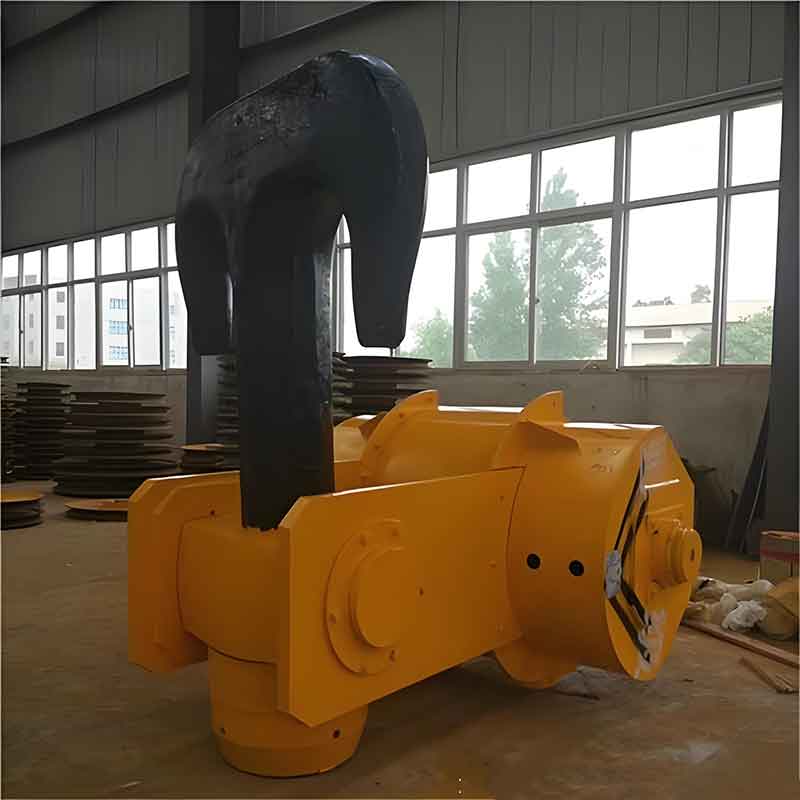

Single Hooks
Versatile forged designs for lifting arrangements using standard rated loads and suitable locking/latch configurations.
02 / Higher-capacity lifting

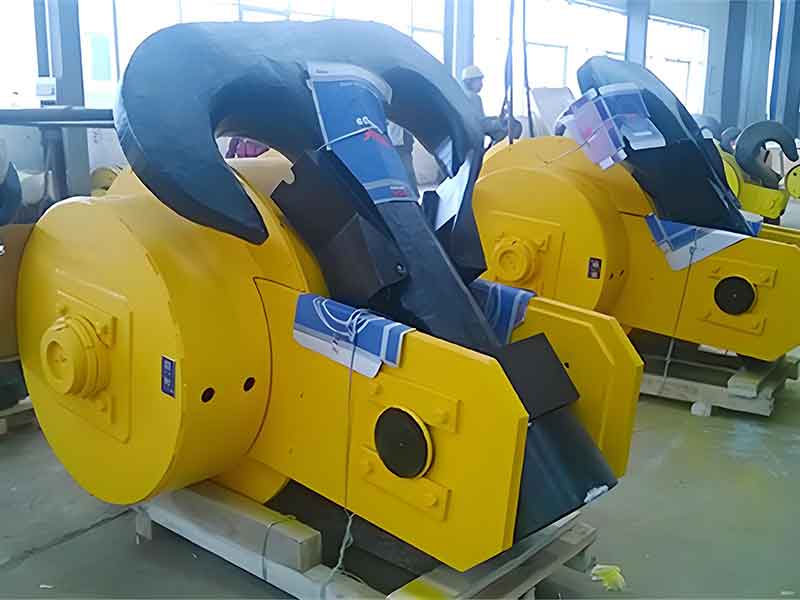

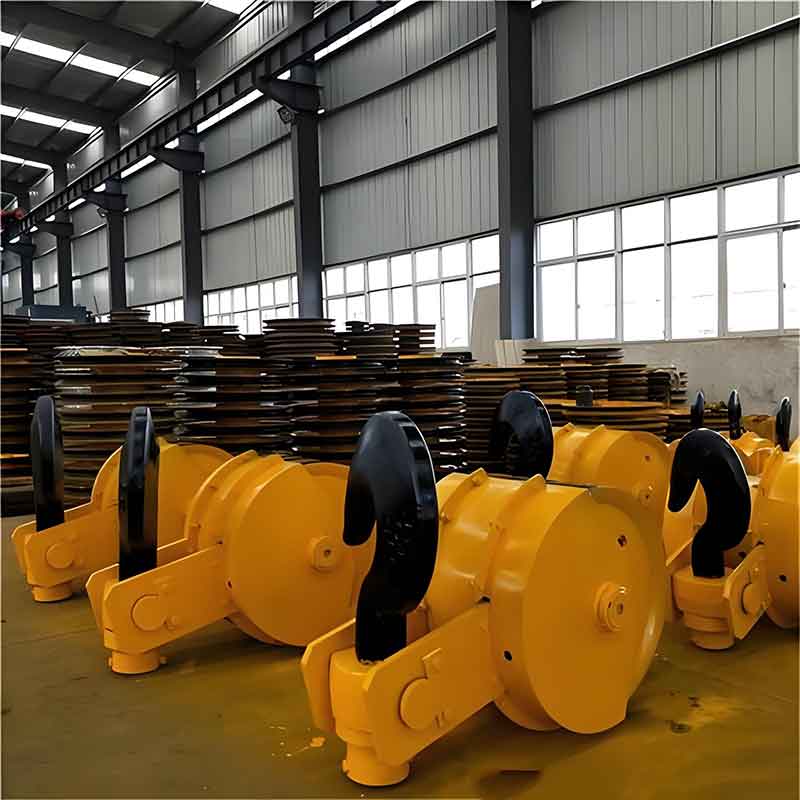

Double Hooks & Blocks
Double hook configurations and multi-sheave blocks with reeving and bearing arrangements matched to the duty.
03 / Special applications
Foundry & Laminated Hooks
Special-purpose construction and optional high-temperature protection, subject to project-specific engineering review.
02 / Selection principles
Start with load.
Finish with fit.
Proper hook and block design depends on dimensions, reeving, duty, environment, and applicable inspection requirements — not capacity alone.
Capacity & hook form
Specify working load, single or double hook configuration, and any specialist lifting environment.
Rope & sheaves
Provide rope diameter, number of line falls, sheave arrangement and governing rope/sheave standards.
Hook opening & fit
Check throat dimensions, swivel, bearings, hook block envelope, headroom and actual connection geometry.
Tests & documentation
Confirm agreed material identification, non-destructive examination and proof-load records for the ordered scope.
03 / Interactive technical RFQ
Configure your
crane hook package.
Update the inputs and review an English specification summary instantly. Use this for an initial RFQ; final geometry and rating need drawing approval.
Configure your requirement
Change the example values to match your project or existing product nameplate.
01 / Scope & capacity
Choose what you need manufactured or replaced.
02 / Wire rope & block
Rope and sheave values apply when the supply includes a block assembly.
03 / Operating conditions
Specify duty class and service conditions for preliminary review.
04 / Optional equipment & delivery
Option availability must be confirmed for the selected hook model.
04 / Commercial planning
Budget guidance
for your project.
The range updates with type, rated load, component options, quantity and timeline. It uses the illustrative formula embedded in the original page, not a factory-approved price list.
- Supply / hook
- —
- Capacity
- —
- Reeving
- —
- Duty / environment
- —
- Options
- —
- Quantity
- —
Budget is preliminary and automatically generated from original example rates; final price needs technical and commercial confirmation.
05 / Product photography
Hooks & blocks
in detail.
Original page product photographs, now displayed with consistent proportions and clearer captions.
06 / Technical overview
Specifications
at a glance.
The ranges below come from the original page and are subject to confirmed manufacturing and engineering specifications.
| Hook designs | Single, double, foundry, and laminated hooks; hook-only or hook block assemblies |
|---|---|
| Listed capacity | 1–500 t; model and duty-specific verification required |
| Rope / reeving | Wire rope Ø8–48 mm; nominal 2–12 falls on block assemblies |
| D/d selection | 18 / 20 / 22 as preliminary choices; determine final ratio by actual rope and applicable design standard |
| Sheave bearings | Sealed roller bearings or bronze bushings (if applicable) |
| Hook equipment | Spring latch / positive lock / foundry configuration, optional swivel, load pin or heat protection |
| Duty / environment | M5–M8; normal, high/low temperature or corrosive operation |
| Documentation | Requested material records, NDT (UT/MT), load test records and outline drawings subject to agreed order scope |
07 / Project workflow
From initial RFQ
to delivered hooks.
- 01 / REQUIREMENTS
Define lifting duty
Capacity, dimensions, lifting cycle, rope, headroom and operating environment.
- 02 / ENGINEERING
Confirm layout
Hook form, block geometry, material, assembly and required drawings.
- 03 / PRODUCTION
Manufacturing
Forging or lamination, machining and relevant assembly operations.
- 04 / INSPECTION
Verify scope
Agreed measurements, requested NDT and proof testing as applicable.
- 05 / SHIPPING
Packing & delivery
Export packing, documentation and delivery according to order terms.
08 / Common questions
Before you
order a hook block.
Provide an existing assembly drawing or nameplate whenever possible — it helps eliminate mounting and reeving mismatches.
Can I order a hook without sheaves?
Yes. Choose “Hook Only” in the specification builder. Rope and sheave inputs will be marked not applicable for that supply scope.
Can you produce forged, foundry and laminated hooks?
These categories are listed in the source page. Final manufacturing availability and model-specific requirements are confirmed during technical review.
Does this configurator determine a safe hook size?
No. It collects requirements and shows simplified planning calculations. The final hook and block design requires approved drawings, load cases, applicable standards and verification by competent engineers.
Can I request inspection and material documents?
Yes. Tick the NDT and material certificate options to include them in your enquiry, then confirm document scope and timing in the quotation and order.
Is the reference budget an official quotation?
No. It is a preliminary estimate using the old page’s pricing formula. The final offer depends on approved specifications, quantity and commercial terms.
09 / Technical and commercial RFQ
Get pricing
& lead time.
Share capacity, hook type, block dimensions, rope/falls and the service environment. A product drawing or an existing hook block photo helps us evaluate compatibility.
Technical files, testing documentation, certification and warranty terms are subject to the final confirmed supply scope.
