Double-Girder Trolley Hoist for Stable Bridge Crane Lifting
10–200 t typical · Double-girder trolley running type · FEM/ISO M5–M7 · VFD hoist & travel optional · Twin-hoist discussion available
Designed for bridge-crane lifting projects that need a stable trolley package, clear wheel arrangement discussion and practical quotation support from early sizing to final confirmation.
- ISO 9001
- CE Marking
- FEM / ISO Duty
- Factory Load Test
- Spare Parts Support
Stable Trolley Travel
Suitable for double-girder crane structures where trolley running stability and rail matching matter from the start.
Higher Capacity Range
Works better for projects that move beyond conventional monorail hoist ranges and need a more robust bridge-crane direction.
Short Hook Approach
The crab trolley structure helps present the compact approach advantage more clearly for runway-based lifting projects.
Faster Project Inquiry
Capacity, lift height, wheel arrangement and control preference can be collected in one clearer quotation path.
Configuration Direction
Start from the standard double-girder trolley hoist, then review the two common configuration directions that are often discussed during quotation.
Main Product

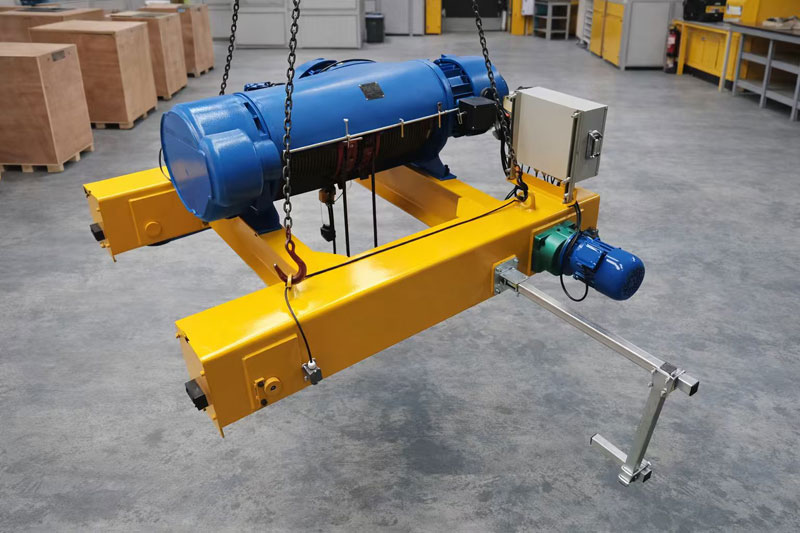

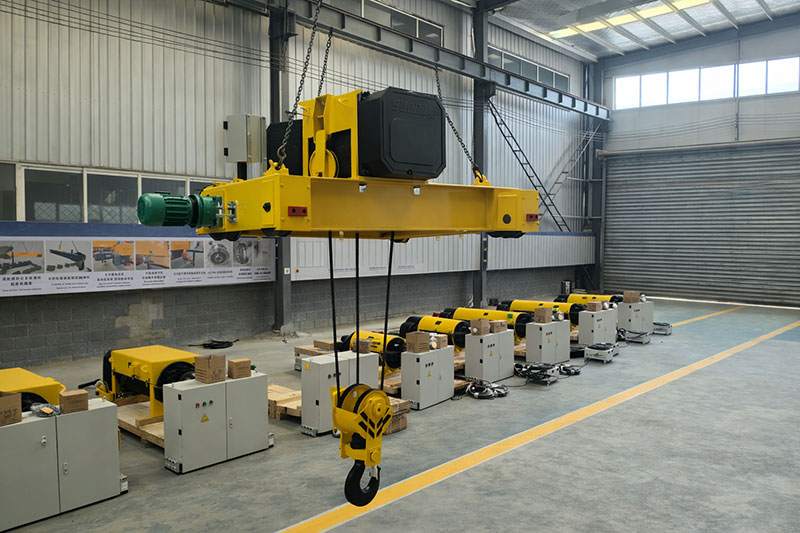

Double-Girder Trolley Hoist
Core FamilyThis is the standard starting point for bridge-crane projects that already prefer a trolley-running structure and need a clear route into specification and quotation.
- Suitable for standard double-girder crane layouts
- Useful when trolley travel direction is already defined
- Good starting point for early quotation comparison
- Can be refined by duty, control, wheel arrangement and layout requirement

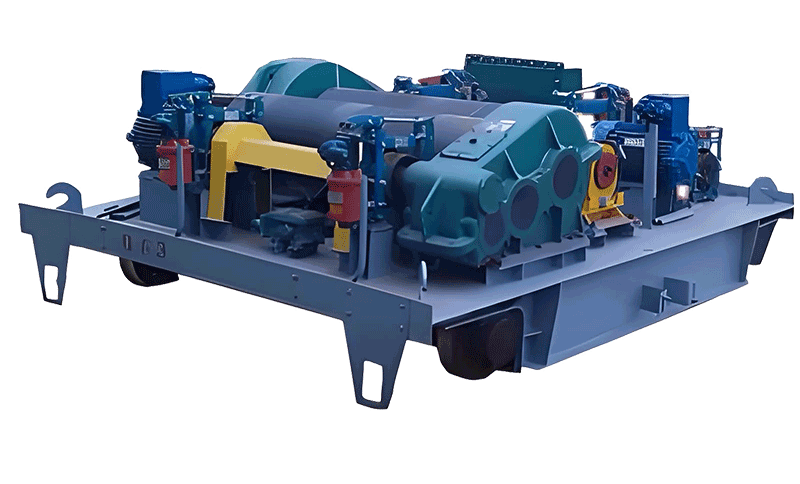

VFD / Higher-Duty Direction
Upgrade PathRecommended for projects that need smoother positioning, more controlled movement and a stronger process-duty direction within the same double-girder trolley hoist family.
- Useful when better positioning accuracy is required
- Helpful for process lines and more frequent operation
- Supports a more upgraded quotation discussion

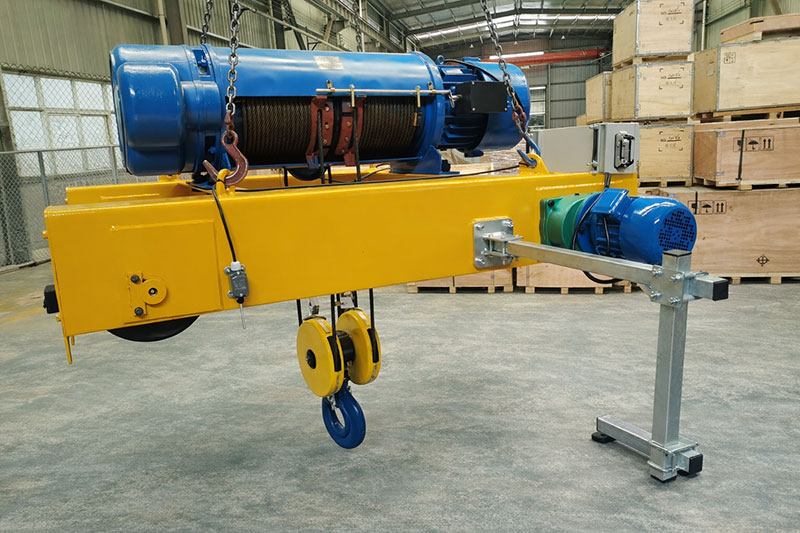

Twin-Hoist / Heavy Layout Direction
Project PathSuitable for buyers who need more project-specific structure discussion, including multi-wheel trolley direction, twin-hoist layout or heavier-duty arrangement.
- Useful for higher-capacity or structure-sensitive projects
- Helps discuss rail condition and trolley package earlier
- Works better with drawings and site data
Build Your Spec
Adjust the main project points below to prepare a clearer discussion on capacity, lift height, trolley layout, control method and duty group before inquiry.
Quick Configuration Builder
Adjust the main project points below to see a more conversion-friendly reference budget range before inquiry.
Budgetary range only. Final quotation depends on confirmed trolley package, wheel arrangement, duty group, power supply, quantity and actual working condition.
Quote Snapshot
These are the main points that help move a general inquiry into a faster and clearer quotation process.
Technical Parameters
This section keeps the technical reference strong, while staying easier to scan for buyers who are still in the early quotation stage.
| Type | Double-girder electric wire rope hoist / crab trolley running between girders |
|---|---|
| Capacity Range | 10–200 t typical, discussed according to crane structure, trolley package and working requirement. |
| Lift Height | 6–60 m reference range depending on application scene, drum arrangement and site layout. |
| Hoisting Speed | 2–16 m/min reference, standard or VFD direction depending on positioning and process needs. |
| Trolley Running Type | Double-girder trolley / crab arrangement for bridge-crane structures with clearer rail and beam definition. |
| Wheel Arrangement | 4-wheel, 8-wheel or further project-specific direction depending on capacity, span and wheel-load requirement. |
| Duty Group | FEM / ISO M5–M7 reference range for more frequent operation and heavier-duty project positioning. |
| Power Supply | 380V / 50Hz / 3Ph standard, export voltage and frequency options available for project discussion. |
| Optional Direction | Twin hoist, load display, remote control, anti-sway and other structure-led options can be reviewed. |
What buyers usually confirm first
A double-girder trolley hoist quotation becomes much clearer when the buyer provides the structural and working-condition points below early in the discussion.
- Required lifting load and lift height
- Bridge-crane span or rail condition if available
- Wheel arrangement or trolley package preference
- Duty group and control expectation
- Power supply and installation country
- Site photos, drawings or current crane data if available

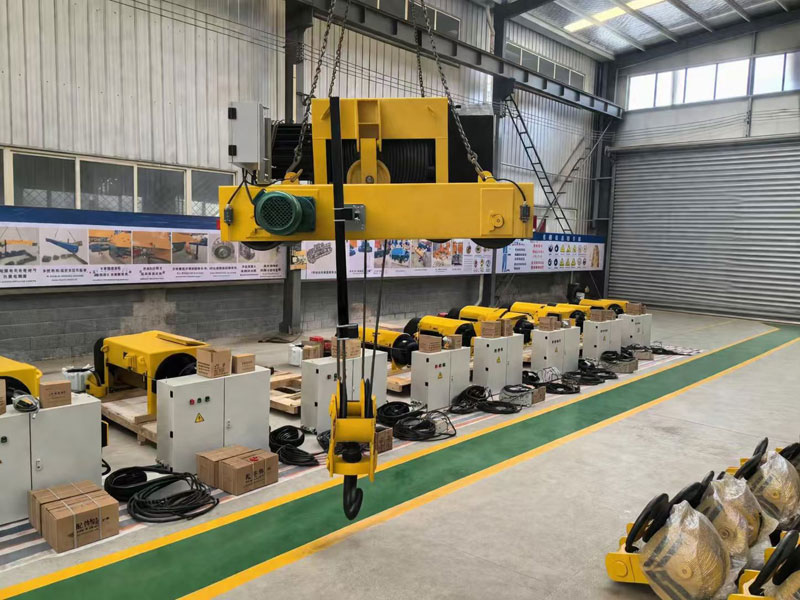

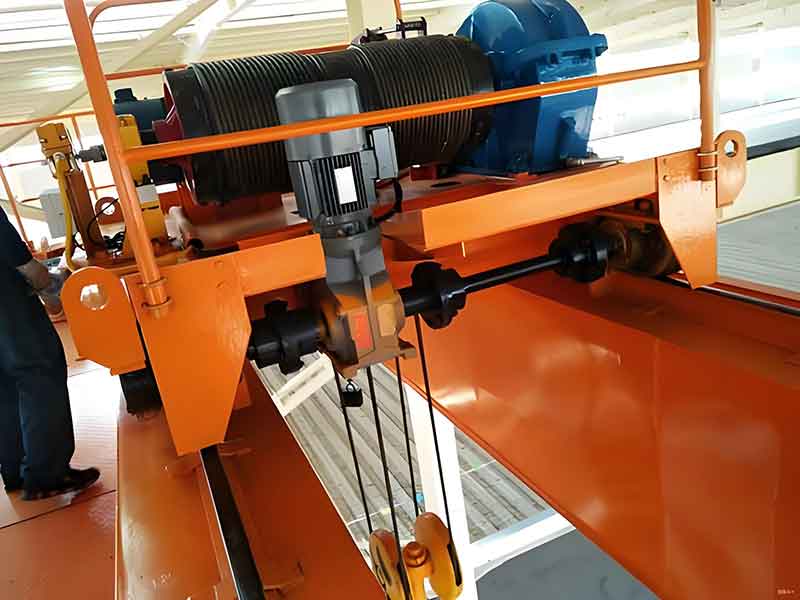

Factory & Product Gallery
Factory and product photos help buyers review trolley structure, component arrangement and overall build quality before quotation confirmation.

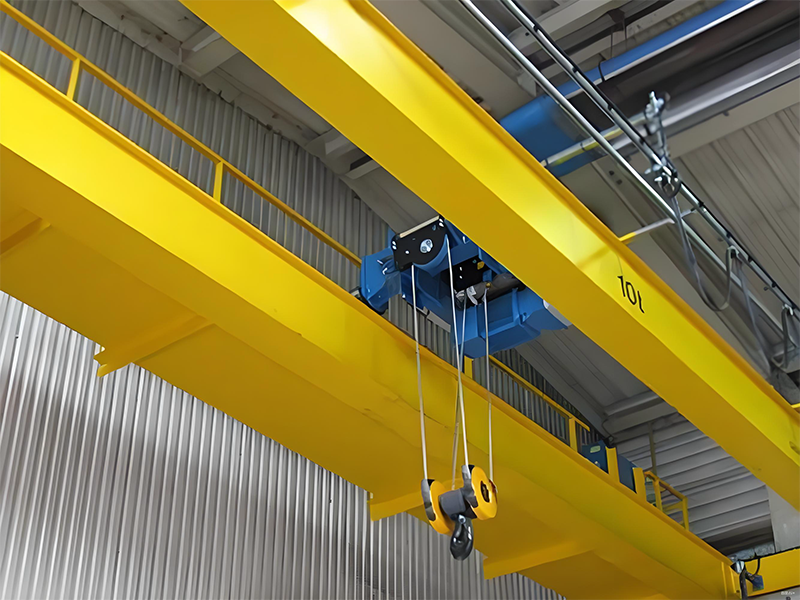

Featured trolley hoist view for project presentation
This larger visual block helps buyers quickly confirm the trolley-running structure, equipment scale and overall bridge-crane direction before they move into inquiry.

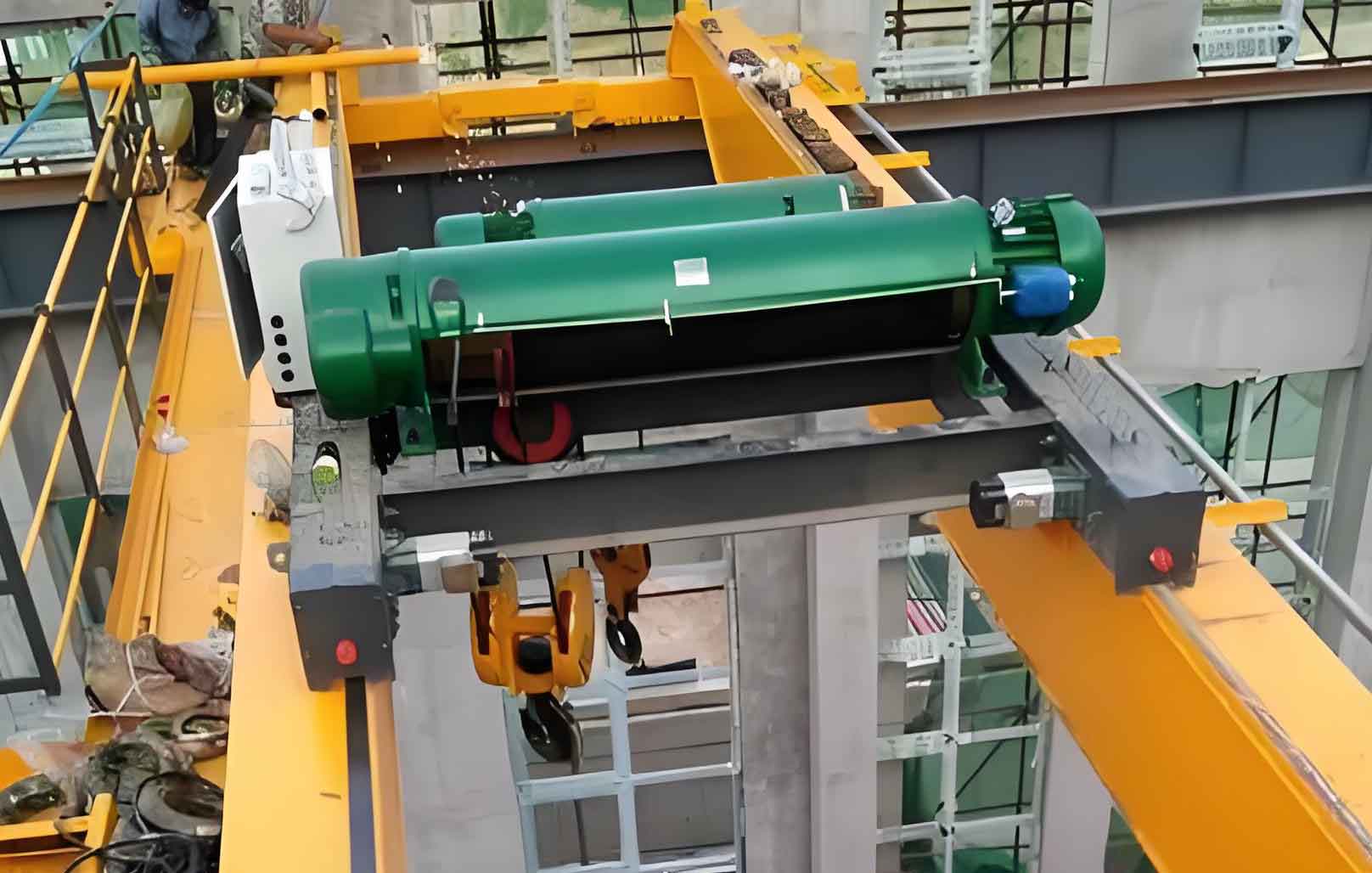

Applications
Double-girder trolley hoists are widely used where bridge-crane lifting needs stable travel, compact hook approach and straightforward project matching.
Suitable for practical industrial lifting layouts
This hoist type is suitable for projects that need dependable lifting support in workshops, warehouses, bridge-crane systems and internal production handling environments.
- Workshop and fabrication lifting support
- Warehouse goods handling and movement
- Double-girder crane matching and runway discussion
- Plant internal logistics and equipment movement
- Projects requiring clearer quotation communication
From Inquiry to Commissioning
Our quotation process usually moves from basic sizing to proposal review, technical confirmation, manufacturing, testing and delivery coordination.
Sizing
Share load, lift height, speed, wheel arrangement, duty group and any rail or crane data you already have.
Proposal
We review structure direction, wheel load, control package and prepare a clearer budgetary quotation path.
Confirmation
GA drawings, key dimensions, power supply and optional upgrade items are confirmed before production.
Manufacturing
Factory assembly, load test and document preparation are completed according to the confirmed project direction.
Delivery
Packing, shipment and after-sales technical communication are arranged for the final project handover.
FAQ
Simple questions that help buyers move faster from browsing into quotation.
Is this page showing one product or three products?
What information should the buyer send first?
Can VFD or higher-duty versions be discussed on the same page?
Can you discuss twin-hoist or custom heavy layouts?
